Expedition Essentials
Designed to be a lightweight and strong dash accessory mounting base for phones, gps, tablets etc. It is a highly versatile mounting system with pre threaded (inserts) patterened after the RAM diamond mounts. It was the first major install I did on my truck. I am very pleased with quality of the product and the way it fits on the dash.
Expedition Essentials 2TPAM Powered Dash Mount.
(2) 4.8 USB Rapid Chargers
We are also going to paint all of the grey to satin black.
Mark the holes center punch and drill. (4) in the top of the radio unit. (2) on each side of the vent bezel.
(4) top of the radio unit.
(2) on each side of the vent bezel.
Remove vent bezel for painting. Tape the 4x4 adjust knob and bottom of the vent openings.
(4) holes in the top.
Power the 2TPAM with a hot wire from the lighter plug.
Paint the bezel with your choice of color.
Mount the 2TPAM to the top of the radio unit.
Trim the edge of the instrument cluster with Dremel tool.
Modifications made.
Bezel painted
Gauge Bezels painted.

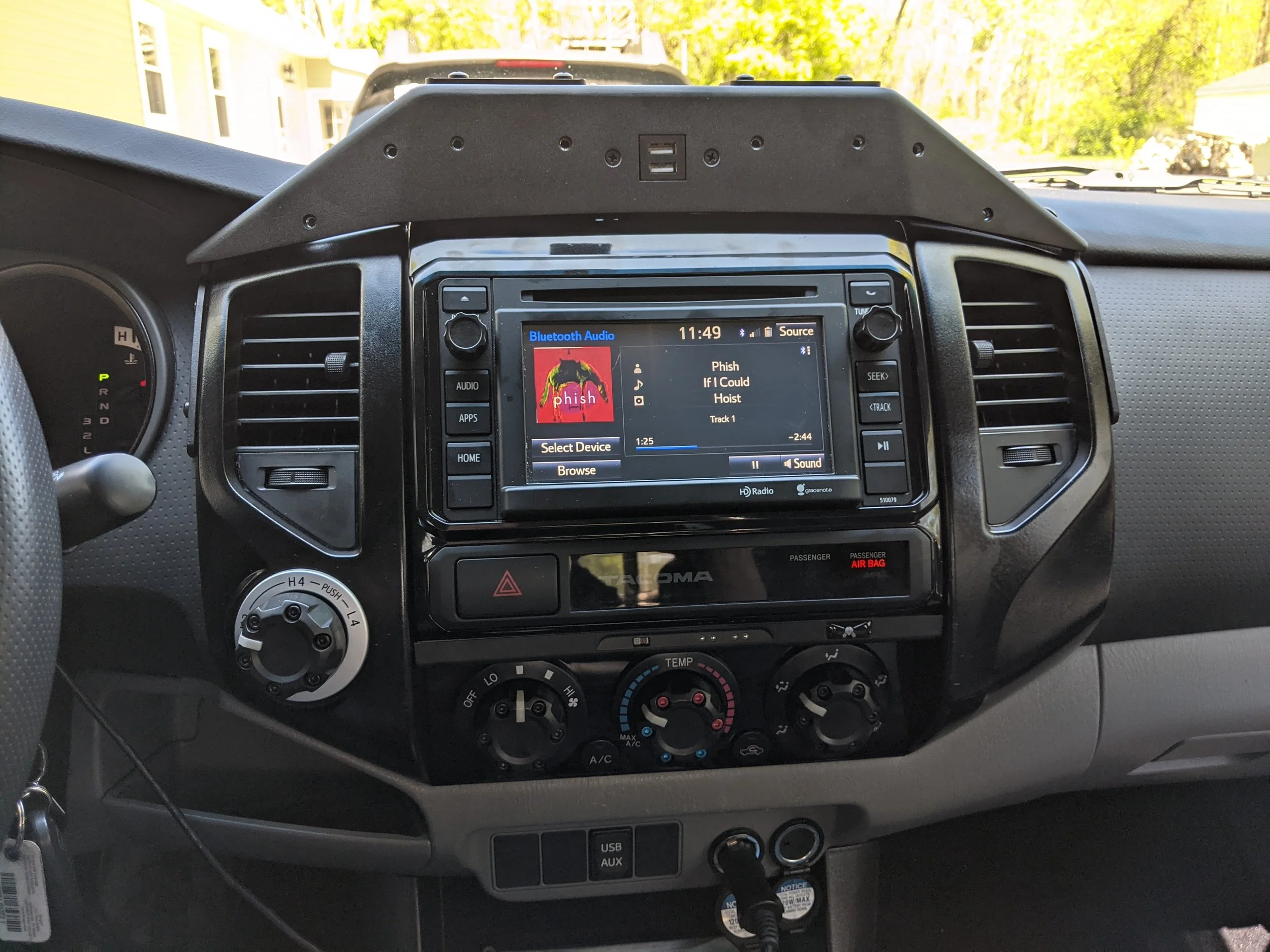

Radio and 2TPAM installed.
Gauge Bezels installed.
(2) more pieces to paint.

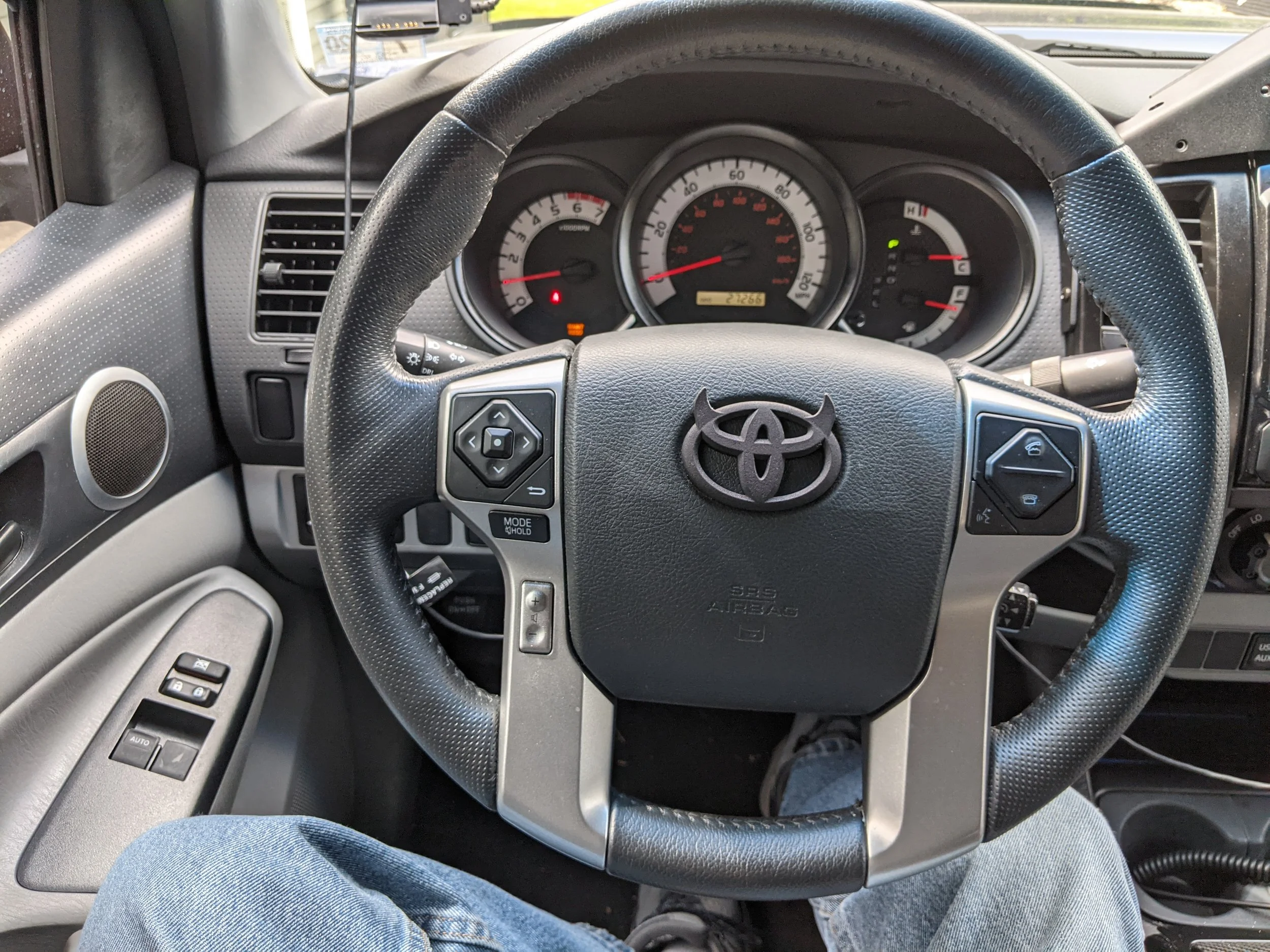

Steering wheel volume control bezels.
Disconnect negative terminal and wait twenty minutes before removing horn cover.
Remove horn cover but do not disconnect.
Remove and disconnect the right bezel.
Remove and disconnect left bezel. Prepare for painting.
Paint Bezels and re-install in reverse order.
